Our Products

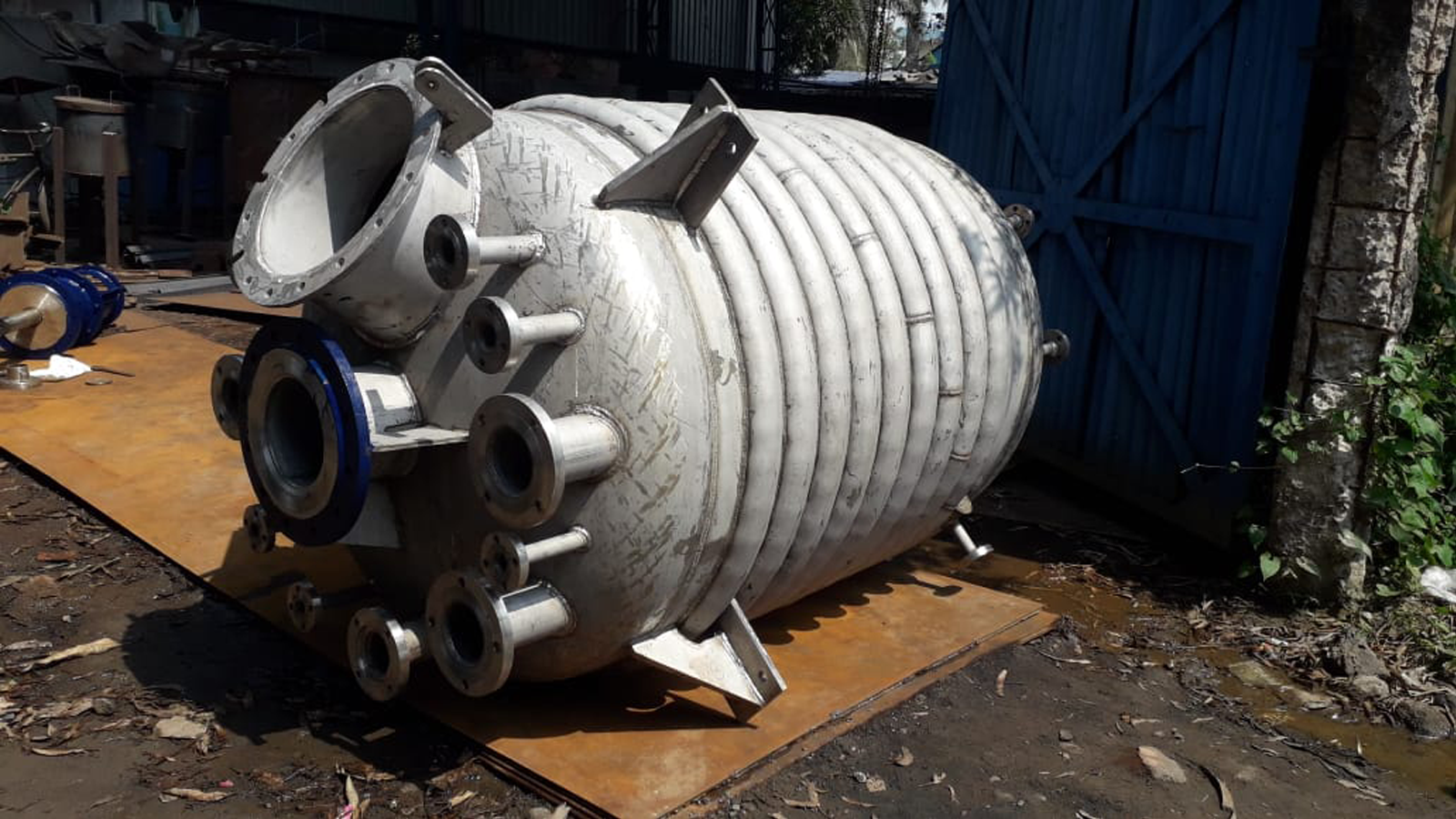

Chemical Reactor Vessel

We have been able to manufacture & supply qualitative range of insulated reactor vessels for the last 10 years. It consist of the reactor body. We make main body from SS: 304/ SS:316 Plates. Agitator, Gear & Motor which convert electricity to the mechanical energy. Total reactor body heating up or cooling down by limpet coil jackets or plain jackets. Which manufactured from seamless pipe, plates. Raw materials feeding & ready products material came out from the Equipment’s Via various nozzles. Products materials unloaded from reactor vessels via bottom nozzle. The gaseous parts are collected from the nozzles on the dishend top. All the dishend manufacture as per shape of the tori spherical.

Our Manufacturing Range

• Capacity: - 1 kl to 10 kl.
• Limpet coil size: -40 NB to 80 NB. (MOC: SS or MS.)
• Max design pressure: - 7.5 bar to 15 bar.
• Max design pressure: - 7.5 bar to 15 bar.
• Material Grade: - SS 304, SS 316, SS 316L.

Heat exchanger

Heat exchanger is a system, that transfers heat between a working fluid and source fluid. They are used in many processes Including heating, cooling, refrigeration. Our manufacturing type of heat exchange Is shell and tube exchanger. A large cylindrical vessel, Called the heat exchanger shell And contains a bundle of the tubes. Here is one fluid flows through inside of the tubes While the other fluid flows around outside of the tubes Or inside of the shell body. This type of heat exchanger is mainly used in large chemical processes.

Our Manufacturing Range

• Pipe Dia: - 15NB to 40NB.
• Max design pressure: - 7.5 bar to 15 bar.
• Length Of shell: 1.0mtr to 2.5mtr
• Material Grade: - IS:2062, SS304, 316, 316L, 310

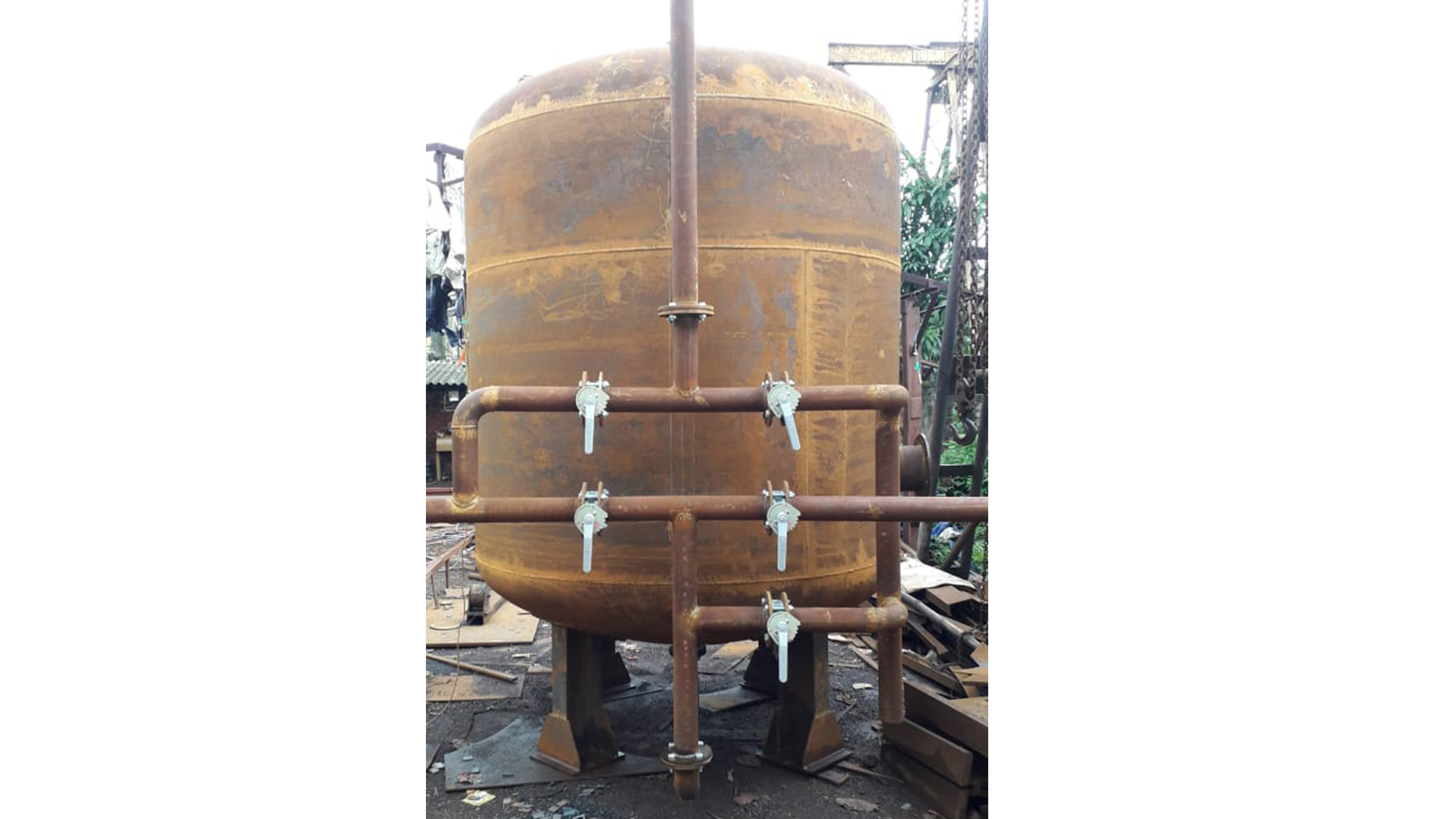

Iron removal media filter

An Iron filter works much like a water softener. The iron filter unit contains a “media bed “like a water softener, But in this case the media is not resin but an oxidizing agent such As manganese dioxide. By removing iron from water, an iron water filter remove the metallic test & foul odor, improving drinking water quality.

Our Manufacturing Range

All the dishend manufacture as per shape of the tori spherical or standard.

• Diameter of the Vessel: - 15NB to 40NB.
• Cylindrical Height of the Vessel: - 1.250 mtr to 2.5 mtr.
• Fontal pipe line: 40NB to 200NB.
• Max design pressure: 7.5 bar to 25 bar.
• Features: Vertical orientation.
• MOC: IS:2062, SA-516 Gr70, IS:2002.

Air receiver pressure Vessel

We have been manufacturing air receiver pressure vessel for the last 15 years. An air receiver tank, also known as a compressed air tank or the air compressor Tank, is a pressure vessel that stores compressed air for later use. Air receiver vessel is a key part of the compressed air system & they have many several important functions. Functions are Buffering. Storing compressed air. Improving efficiency. Reducing Pulsations. Removing Moisture. Improving Torque & Speed.

Our Manufacturing Range

All the dishend manufacture as per shape of the tori spherical or standard.

• Cubic Capacity: - 0.250 m3 to 25m3.
• Max design pressure: - 7.5 bar to 25 bar.
• Features: Vertical or Horizontal orientation.
• MOC: IS:2062, SA-516 Gr70, IS:2002.
• COC: IS 2825, ASME,

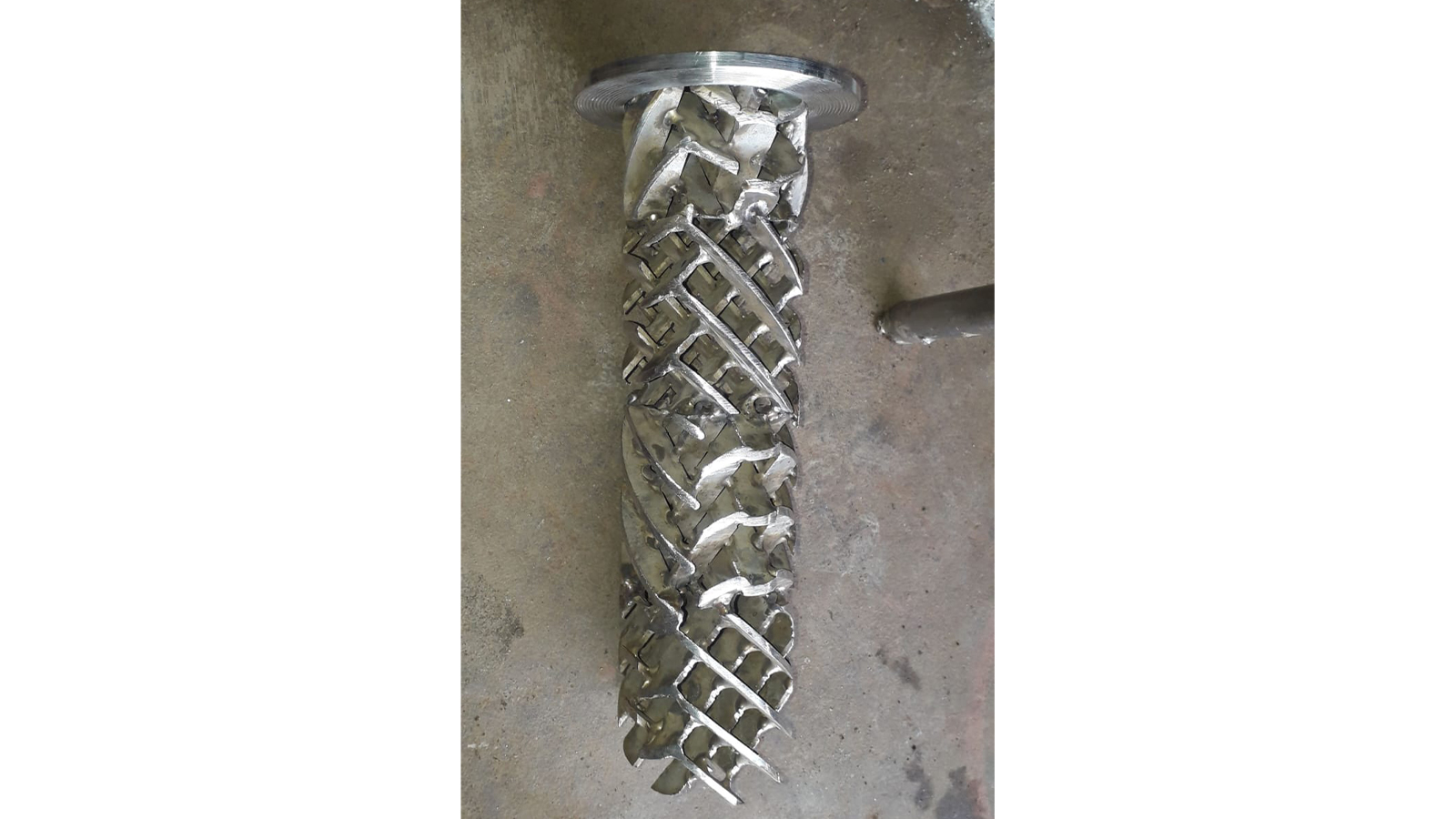

Static Mixer

A static mixer is a device, which is use for continuous mixing of fluid materials, Without moving equipment It can be also used to mix gas streams, disperse gas into liquid or blend immiscible.

Our Manufacturing Range

All the dishend manufacture as per shape of the tori spherical or standard.

• Pipeline size: 40 NB to 150 NB.
• Length Of element: 250mm to 450mm
• Material Grade: IS:2062, SS304, 316, 316L, 310
